Universal Beam Clamp
Universal Beam Clamp
Universal Beam Clamp
Roll over image to zoom in Click on image to zoom
Universal Beam ClampUniversal Beam ClampUniversal Beam Clamp

Universal Beam Clamp

Save $0.33
Homepedia
Finish: Zinc

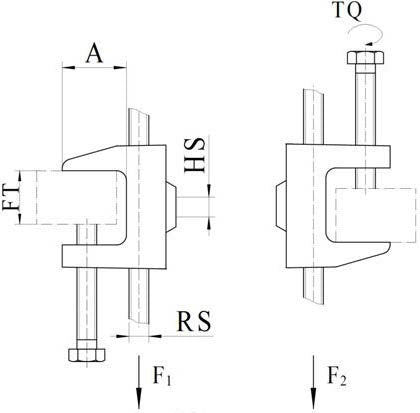

Rod Size RS: 1/4"
Flange Thickness FT: 13/16"
Price:
$2.22 CAD $2.55 CAD

Pickup available at Pickup Location

Usually ready in 24 hours

Description

Universal Beam Clamp with Tapped Hole

MATERIAL: Malleable Iron

FINISH: Zinc Electro-Galvanized(Zinc)

APPROVALS: Complies with Manufactures' Standardization Society (MSS) SP-58 & SP-69 (Type 19). Complies with Federal Specifications A-A-1192A (Type 19).

NOTE: Set screw must be tightened and torqued onto the sloped side of the I-beam. Recognizing that torque wrenches are generally not used or available on many job sites, the set screw should be tightened so it contacts the I-beam, and then an additional 1/4" to 1/2" turn added.
